Tiny1-c 256*192 Uncooled Thermal Camera Infrared Thermal Imaging Module for Handheld Terminals

Place of Origin : Zhejiang, China

Model Number : TINY-1 256 2mm

Display resolution : 256*192

Field of View : 90°x65

Thermal color palettes : 6 color palettes

Thermal Image Pixel : 256*192

Image Frequency : ≤25Hz

Thermal Sensitivity : <50mK @25℃, F#1.0, 25H

Detector : Vanadium Oxide Uncooled Infrared Focal Plane Detector

IR wavelength : 8~14μm

Resolution : 256*192

Pixel pitch : 12μm

NETD : <40mK @25℃, F#1.0, 25Hz

Non-uniformity correction : Auto shutter correction

Contact Now

Tiny1-c 256*192 Uncooled Thermal Camera Infrared Thermal Imaging Module for Handheld Terminals

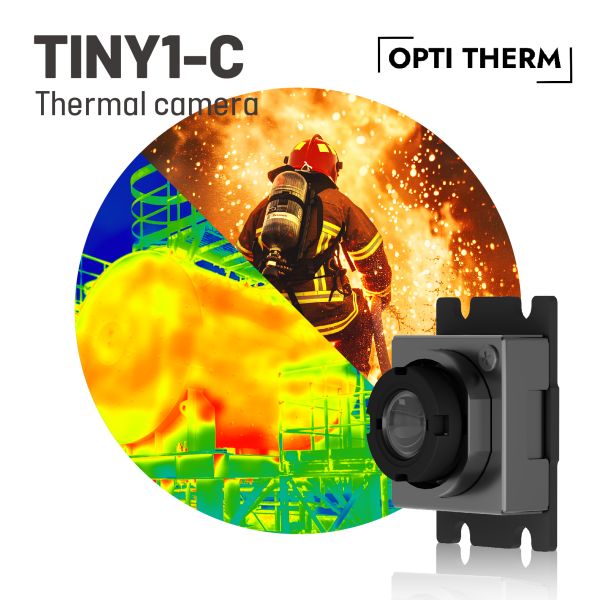

TINY1-C THERMAL IMAGING CAMERA

TINY1-C is a long wave infrared (8-14 μ m, LWIR) miniature thermal imaging module that can convert an object's own thermal radiation into images and temperature data.

This product has small size, light weight, low power consumption, and good image quality, and is suitable for industrial temperature measurement, security monitoring, intelligent IoT and other fields.

Details Images

Product Paramenters

System Overview
Detector	Vanadium Oxide Uncooled Infrared Focal Plane Detector
IR wavelength	8~14μm
Resolution	256×192/160×120
Pixel pitch	12μm
NETD	＜40mK @25℃, F#1.0, 25Hz
Thermal time constant	＜10ms
Detector framerate	≤25Hz
Non-uniformity correction	Auto shutter correction
Image output formats	10bit/14bit
Focus method	Fixed focus
Thermography
Temperature measurement range	-15℃~150℃ (high quality) 50℃~550℃ (wide range)
Temperature measurement accuracy	±2℃ or ±2% (typ.)
Temperature measurement accuracy		Support body temperature detection
Power
Video interfaces	3.3V, 5V
Control interface	SPI/DVP
Typical power consumption	I2C
Video interfaces	Normal mode: 240mW (typ.)
Video interfaces		Peak (shutter power consumption): 600mW (typ.)
Physical Attributes (with lens and flange)
Core dimensions (w×l×h）	13.2mm×13.2mm×8.5mm (see mechanical drawings)
Environmental
Operating temperature range	Imaging: -40℃~80℃
Operating temperature range		Temperature measurement: -10℃~75℃
Storage temperature range	-45℃~85℃
Shock	25g, 11msec, half sine wave, 3 axes

Lens Selection

Focal length	F-number	FOV	Detection Distance
2mm	1.1	90°x65°	200m
3.2mm	1.1	56°x42°	320m
4.3mm	1.2	40°x30°	430m

Products Description

Built-in shutter, mini size 13mm×13mm×8mm, easy to integrate

Support full array temperature data output

Tiny1-c 256*192 Uncooled Thermal Camera Infrared Thermal Imaging Module for Handheld Terminals Images
